Cudy AP1200 Outdoor

Point d’accès Wi-Fi AC1200

IP65, -40~65°C (-40~149°F), 4kV Surge
Wi-Fi 5 double bande à 4 flux
Wi-Fi 867 Mbps + 300 Mbps ¹
1 port Ethernet rapide
PoE passif 24 V
30 appareils connectés ²
Modes routeur/AP/RE/WISP/client

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Le prix initial était : 30.000 CFA.Le prix actuel est : 27.000 CFA.

Commander via Whatsapp

Add to compare

Add to wishlist

10 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Un point d’accès WiFi monté sur poteau/mur avec boîtier IP65, PoE et fonctionnalités Cudy Mesh, idéal pour les environnements de parc, de ferme et de parking.


Wi-Fi AC1200 double bande rapide Grâce aux fonctionnalités MU-MIMO et bi-bande, ce point d’accès offre un Wi-Fi bi-bande haut débit et fluide, jusqu’à 867 Mbit/s sur 5 GHz et 300 Mbit/s sur 2,4 GHz. Idéal pour les jardins, les terrasses, les cafés ou tout espace extérieur nécessitant un Wi-Fi puissant et fluide.	Couverture Wi-Fi améliorée grâce au Beamforming Performances de couverture Wi-Fi testées dans quatre scénarios, alimentées par la technologie Beamforming et deux antennes externes, garantissant des connexions solides et fiables dans votre espace extérieur.

Spécifications matérielles

Model Version	AP1200 Outdoor 1.0
CPU	CPU Details	580 MHZ Single-Core CPU
Memory/Storage	Flash/ROM	8 MB (64 Mbit ) NOR
	DDR/RAM	64 MB (512 Mbit) DDR2
Wireless	5 GHz Wi-Fi Speed	867Mbps
	2.4 GHz Wi-Fi Speed	300Mbps
	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Detachable
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Detachable Wi-Fi Antennas Connector	RP-SMA Female
	Beamforming	True
	Range Performance	Max: 170 m (558 ft) Park: 150 m (492 ft) Street: 50 m (164 ft) Woods: 30 m (98 ft)
	Wall Performance	NA
Interfaces	10/100 Mbps RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	5 GHz Wi-Fi 2.4 GHz Wi-Fi LAN Internet System
	Physical Buttons	WPS Button Reset Button
	Power Input	PoE via Ethernet Port
Power	Power Methods	Passive PoE
	Passive PoE Input	24V
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 24V Passive PoE
	Max Power Consumption (W)	12 W
	Idle Power Consumption (W)	2.5 W
Reliability	EMC	ESD: Contact: 4kV; Air: 8kV IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
	Environment	Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉) Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 0% ~ 100% non-condensing Storage Humidity: 5% ~ 90% non-condensing
	Ingress Protection Rating	IP65 When devices is installed vertically
Certifications	FCC, CE
Mechanical	Installation	Wall-mount Pole-mount
	Dimension	Device Body: 240×100×53.7 mm 9.45×3.94×2.11 inches Each Antenna: 197.5×21.6×15.5 mm 7.78×0.85×0.61 inches
	Product Weight	415 g (14.64 oz.)

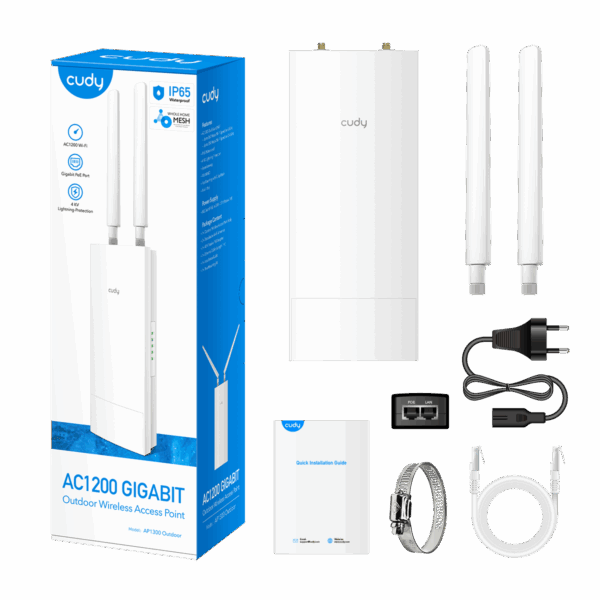

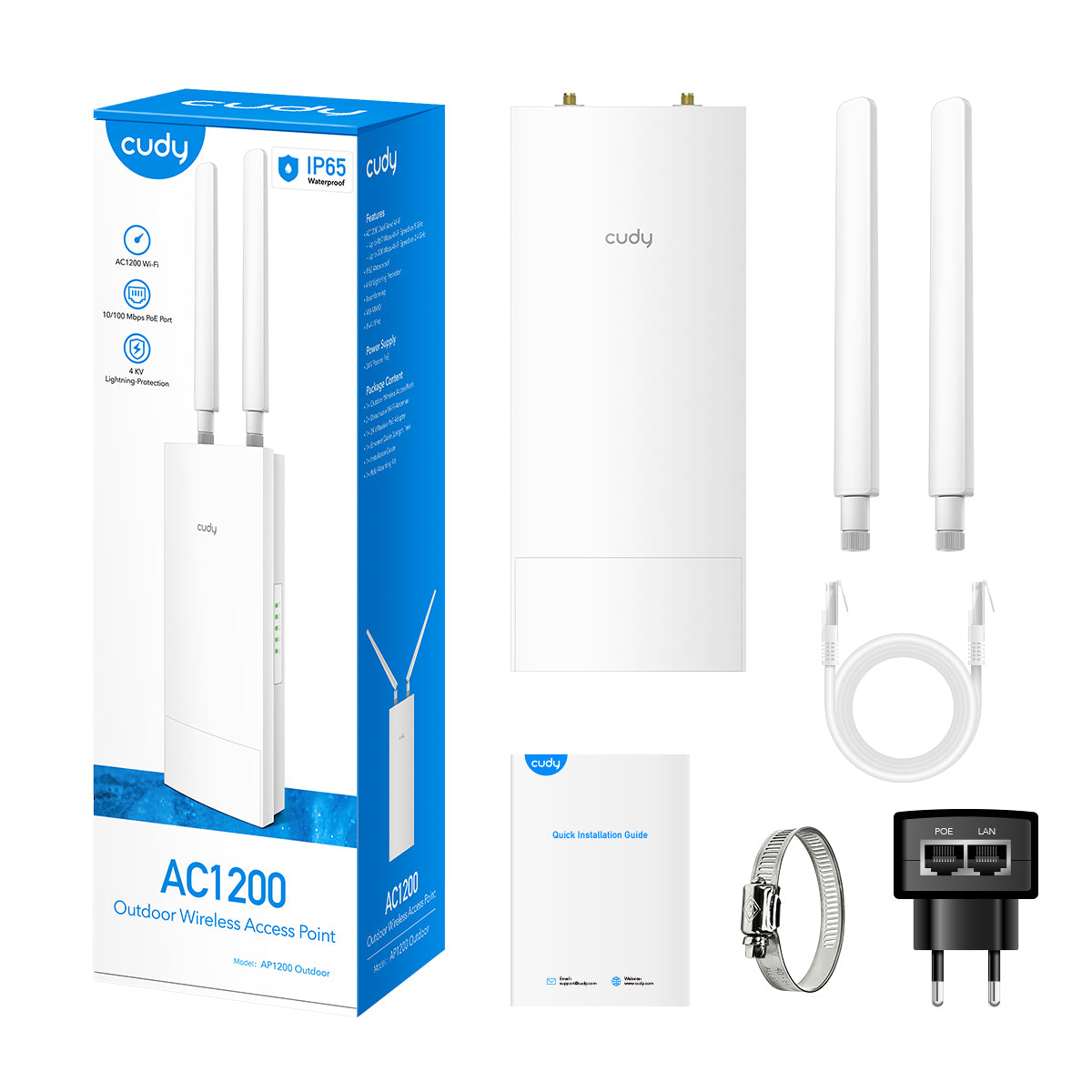

Package Content	AP1200 Outdoor Detachable Antennas PoE Adapter Power Cord Mounting Kit Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	EU: 768 g (27.09 oz.)
	Retail Package Dimension	324×107×86 mm 12.76×4.21×3.39 inches
	Units per Carton	20
	Carton Net Weight	EU: 15.4 kg (33.95 lbs)
	Carton Gross Weight	EU: 16.3 kg (35.94 lbs)
	Carton Dimension	46×33.7×45 cm 18.11×13.27×17.72 inches

Spécifications du logiciel

Model Version	AP1200 Outdoor 1.0
Wireless	Wi-Fi Standards	Wi-Fi 5
	Max Wi-Fi Modulation	256-QAM
	Wi-Fi Efficiency	MU-MIMO
	Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
	Max Capacity	128
	Recommended Client Upper Limit	30
	Max Wi-Fi Channel Width	80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	WPS	True
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Client	OpenVPN Wireguard PPTP L2TP
	DNS Options	Manual DNS Rebind Protection Override Clients’ DNS
	Wake on LAN	True
	Online Detection	True
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	Local Control Method	Config Web Page App Control
	Remote Control Method	TR069/TR098/TR111/TR143/TR181 Config Page via HTTP
	Firmware Upgrade	Local Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English German Spanish French Hebrew Italian Portuguese Ukrainian Russian Korean
Dashboard	Panel	Internet Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Internet Speed WISP Speed Wi-Fi Speed
General	Internet Failover Sequence	WAN WISP
